Stainless Steel Vacuum Mill Jar



1. Special design for the valve, convenient operation, good sealing performance.
2. Made of stainless steel, lining PU, nylon, alumina etc.
3. Factory direct sales, high cost performance.

Parameters of Stainless Steel Vacuum Mill Jar for Planetary Ball Mill
Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height of Not Containing Cover (mm)	Total Height (mm)	Weight (KG)
50ml	39	49	45	50	58	0.7
100ml	48	62	57	65	72	1.3
250ml	73	88	65	73	80	2.1
500ml	90	107	93	100	107	3.5
1L	115	132	118	128	135	5.4
1.5L	115	131	143	150	158	5.8
2L	141	153	133	140	149	6.3
3L	141	157	198	205	213	9.2
4L	168	178	200	205	213	9.2
5L	182	192	200	205	213	10.2
Remarks:1. Size deviation within ±2； 2. Weight deviation within ±0.2KG

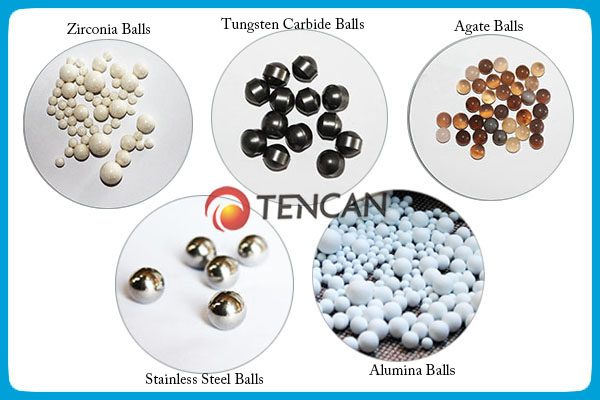

Mill Balls

We can provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
