Vertical Planetary Ball Mill

  • Model No.:XQM-2A
  • Brand:TENCAN
  • Applications:The planetary ball mill is widely used in many fields of geology, mine, metallurgy, electric industry, construction, ceramics, chemicals, light industry, medicine, environmental protection etc.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
Overview

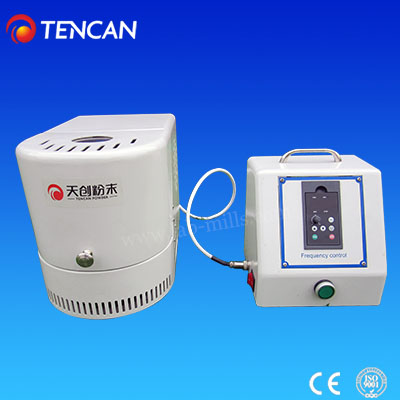

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.






Working Principle
Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.




Features
1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Application Cases of Planetary Ball Mill

Application Cases of Planetary Ball Mill

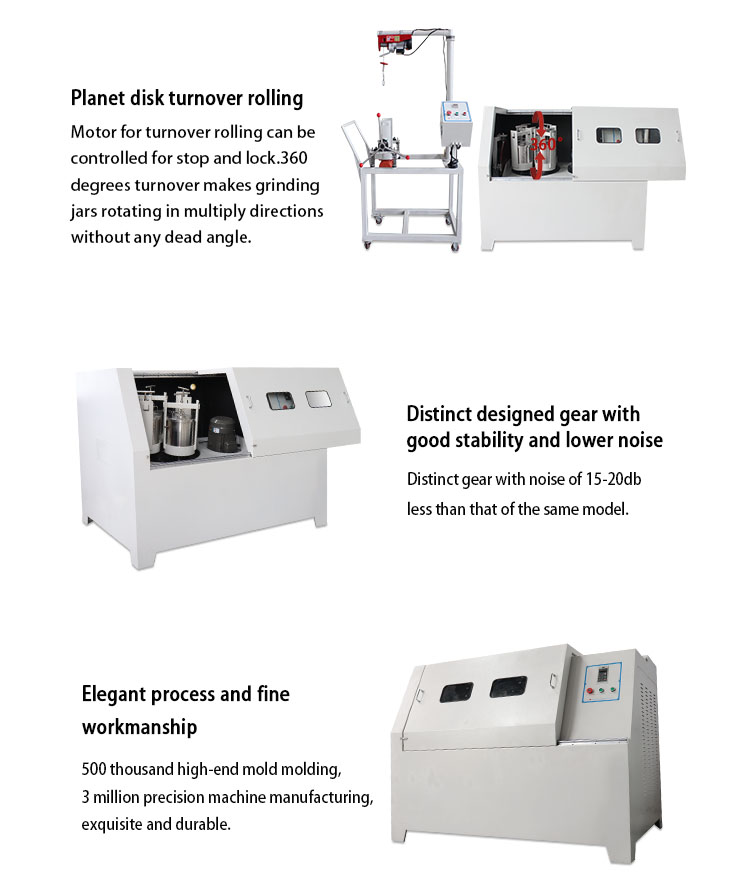

Technical Features of Vertical Planetary Ball Mill
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Smallest granule reaches 0.1μm
Rotational Speed Ratio 1:2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel,agate,nylon,corundum,zirconia,etc


Main Parameters of Vertical Planetary Mill Ball (SquareType)
Model Power
(KW)
Voltage Dimension
(mm)
Revolution
Speed
(rpm)
Rotation
Speed
(rpm)
Total
Timing
(min)
Alternating Run
Time of
Forward
& Reversal Rotation
(min)
XQM-2 0.75 220V-50Hz 750*470*564 35-335 70-670 1-9999 1-999
XQM-4 0.75 220V-50Hz 750*470*564 35-335 70-670 1-9999 1-999
XQM-6 0.75 220V-50Hz 750*470*564 35-335 70-670 1-9999 1-999
XQM-8 1.5 220V-50Hz 900*600*640 35-290 70-580 1-9999 1-999
XQM-10 1.5 220V-50Hz 900*600*640 35-290 70-580 1-9999 1-999
XQM-12 1.5 220V-50Hz 900*600*640 35-290 70-580 1-9999 1-999
XQM-20 4 380V-50Hz 1200*750*920 25-215 50-430 1-9999 1-999
XQM-40 5.5 380V-50Hz 1400*850*1160 20-195 40-390 1-9999 1-999
XQM-60 7.5 380V-50Hz 1600*990*1250 27-174 40-260 1-9999 1-999
XQM-100 11 380V-50Hz 1750*1140*1330 27-160 40-240 1-9999 1-999


Main Parameters of Vertical Planetary Mill Ball (Semi-circle Round Type)
Model Power
(KW)
Voltage Dimension
(mm)
Revolution
Speed
(rpm)
Rotation
Speed
(rpm)
Total
Timing
(min)
Alternating Run Time
of Forward
& Reversal Rotation
(min)
XQM-0.4A 0.25 220V-50Hz 500*300*340 45-435 90-870 1-9999 1-999
XQM-2A 0.75 220V-50Hz 750*470*590 35-335 70-670 1-9999 1-999
XQM-4A 0.75 220V-50Hz 750*470*590 35-335 70-670 1-9999 1-999
XQM-8A 1.5 220V-50Hz 880*560*670 35-290 70-580 1-9999 1-999
XQM-10A 1.5 220V-50Hz 880*560*670 35-290 70-580 1-9999 1-999
XQM-12A 1.5 220V-50Hz 880*560*670 35-290 70-580 1-9999 1-999
XQM-16A 3 380V-50Hz 950*600*710 30-255 60-510 1-9999 1-999


Mill Pots and Mill Balls
Besides the planetary ball mill machine, our factory provides all kinds of mill pots stainless steel pot, zirconia pot, alumina pot, nylon pot, PU pot, tungsten pot, hard metal pot tempered nylon pot etc. Further, and we also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.


Suggestions for Matching Solution About Mill Jars & Materials


We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Suggestions for Matching Solution About Grinding Medium & Materials



Pictures of Accessories & Spare Parts
