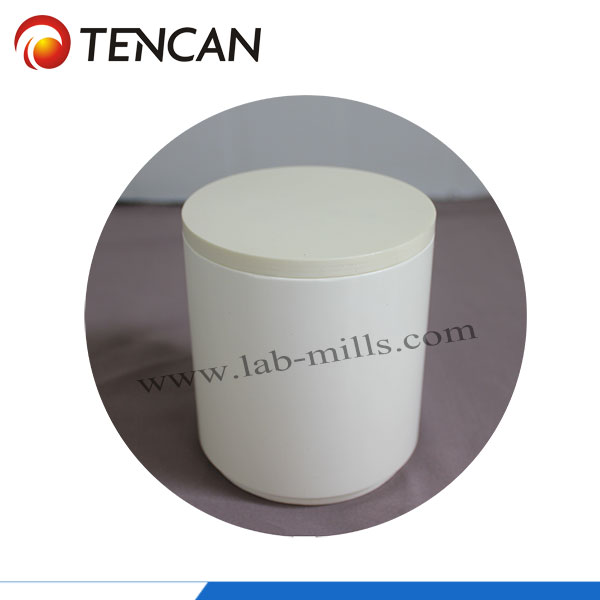

Zirconia planetary Mill Jar

  • Brand:TENCAN
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc. Zirconia mill jar is particularly suitable for vertical stirring mill, horizontal rolling mill, vibration mill, and various high-wire-speed sanding stick pins, etc.
Hardness of zirconia: 12.3 (GPa)
Density: 6(g ▪ cm-3)
consumption resistant: 0.48(ppm/hrs)



1. High hardness, high strength, high tenacity, high wear resistant and good corrosion resistant.
2. Strong acid resistant and alkali resistant.
3. Wear-resistant, corrosion-resistant.
4. No pollution.
5. High grinding efficiency.
6. Long life and low cost integrated.
7. Wet grinding and dispersion of occasions.
Parameters of Zirconia Mill Jar
Volume of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
50ml 38 55 52 60 67 0.6
100ml 50 65 58 66 75 0.8
250ml 74 92 70 78 88 1.8
500ml 84 100 100 108 118 2.3
1L 108 128 128 138 148.5 4.7
1.5L 112 132 155 165 175.5 5.5
2L 138 158 140 150 162 6.9
2.5L 138 158 170 180 192 7.8
3L 138 158 198 208 220 8.6
4L (packaged 2mm stainless steel) 175 205 205 222 231 14.8
5L (packaged 2mm stainless steel) 170 192 228 240 254 16.7
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG
Mill Balls

Our factory can provide stainless steel pot, alumina pot, nylon pot, PU pot, tungsten pot, etc. And we can also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.
